Wireless remote adapter RP-070 for Technics decks

Updated May 12, 2021

Compatible with Technics RS-1500US, RS-1506US, RS-1520US and RS-1700US reel to reel decks and RS-M85, RS-M85 Mk2, RS-M88, RS-M95 and RS-9900US cassette decks.

I sell this on eBay for $85 or buy direct for $80 + shipping of $10 within the US or $25 outside the US.

Contact me at scott@revoxremotes.com

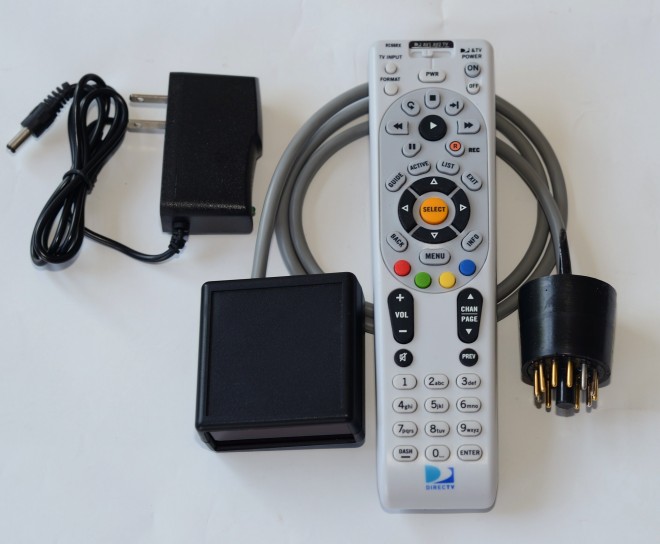

Comes with remote receiver, universal remote and AC adapter (US, EU or EU with AU adapter)

Contact me to order. My email address is scott@revoxremotes.com

Installation: Turn off the power to the tape deck. Plug the remote adapter into the remote connector on the back of the tape deck. Plug the AC adapter into the wall and then into the back of the wireless adapter. Now the tape deck power can be turned back on. The light on the front of the remote adapter should be on.

The remote adapter controls the standard 6 transport functions: Play, Stop, F.F., Rewind, Record, Pause and Reverse Play if your deck has those functions. All functions can be controlled using any universal remote programmed for the proper Sony VCR code. Reverse play is controlled via the #1 button on the remote keypad if the deck supports reverse play. The remote adapter can be programmed to respond to Sony VHS VCR, Beta VCR, 8mm VCR and Laser Disc Player codes. To select between the four options there are two jumpers inside the unit. Remove the two screws on the bottom of the unit and remove the top cover.

Toward the front window are two jumpers labeled 1 and 2. They configure the remote device code per the table below.



Device Code


RCA Remote



Beta VCR



8mm VCR
20034 VCR-098
20032 VCR-099





JMP1 and JMP2 are JMP by default

Configuring the RCA Universal Remote
To program the RCA remote press and hold the Code Search button until the red light comes on. Release the Code Search button and momentarily press the VCR button then enter the 3 digit code from the table above (default is 119). The red light should blink after each keypress and go out after the last digit is entered. Press the VCR button and press one of the transport control buttons (PLAY, STOP, FF, REW, REC or PAUSE). The light on the front of the remote adapter should blink off momentarily. If the light does not blink off try reprogramming the remote or check the state of the jumpers inside the remote adapter. On the RCA remotes the REC button needs to be pressed twice to activate record.

Configuring the DirecTV Universal Remote
To program the DirecTV remote first slide the switch at the top to AV1 or AV2. Press and hold the MUTE and SELECT buttons until the green light at the top blinks twice then release. Using the number keypad enter the 5 digit device code from the table above. If done correctly the green light will blink twice after the last digit is entered. On this remote REC button must be pressed twice to activate record. The full manual for the DirecTV remote can be found here.

For instructions on configuring other remotes go to this page and select from the list of tested remotes. Click Here

Remote adapters are also available for Aiwa, Akai, Ampex, Crown, Denon, Nakamichi, Otari, Pioneer, Revox, Sony, Studer, Tandberg, Tascam, Teac and Technics decks.
