Instructions for setting up the

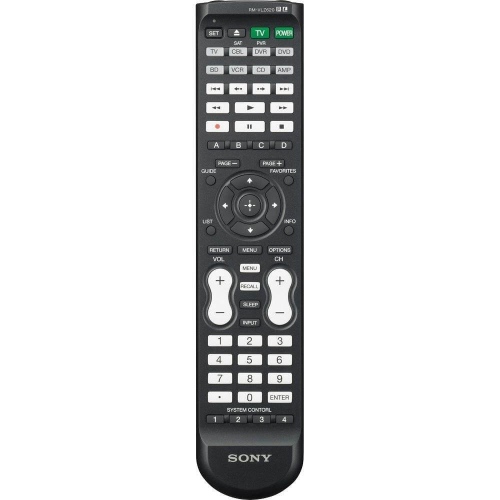

Sony RM-VLZ620
8 Component Universal Remote Control
with learning ability
1) Find the Component Code number for the desired Device from the table below.
Device
|
Component Code
|
Sony Beta VCR
|
60033
|
Sony 8mm VCR
|
---
|
Sony VHS VCR
|
60032
|
Sony LDP
|
---
|
2) On the Sony RM-VLZ620 remote press and hold the SET button in the upper left corner. After three seconds the red light will come on and stay on. Don't release the SET button yet.
3) Press the VCR button and then release both the SET button and the VCR button. The red light will stay on.
4) Enter the five digit Component Code on the remotes number pad. The red light will blink three times and then go out.
The VCR preset should now be set.
The full instruction manual for this remote is located here --> Sony RM-VLZ620 Manual
Device Code List for this remote are located here --> Sony RM-VLZ620 Codes
